E6B2-CWZ6C 100PR 360PR 500PR 720PR 1000PR 1024PR 1800PR 2000PR 2M Codificador Rotativo Incremental Diámetro 40mm NPN E6B2-CWZ6C
Codificador Rotativo Incremental de Eje, 5 a 24 VDC, Colector Abierto NPN, Detalles Imágenes Hay una variedad de opciones de resolución para Codificador Rotativo Incremental. Por favor indique claramente la r...
- Overview
- Related Products
Eje incremental Codificador rotativo, 5 a 24 VDC, colector abierto NPN,
Imágenes de detalles
Hay una variedad de opciones de resolución para Incremental Codificador Rotativo . Por favor indique claramente la resolución y la longitud del cable para cualquier consulta o pedido.
Diámetro externo |
Modelo |
Opciones de Resolución (pulsos/vuelta) |
Opciones de longitud de cable |
Dia25 mm |
E6A2-CWZ3E |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
E6A2-CWZ3C |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CWZ5C |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CW3E |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CW3C |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CW5C |
100P/R, 200P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CS3E |
10P/R, 20P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CS3C |
10P/R, 20P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 500P/R |
0,5 m |
|
E6A2-CS5C |
10P/R, 20P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 500P/R |
0,5 m |
|
Diám. 40 mm |

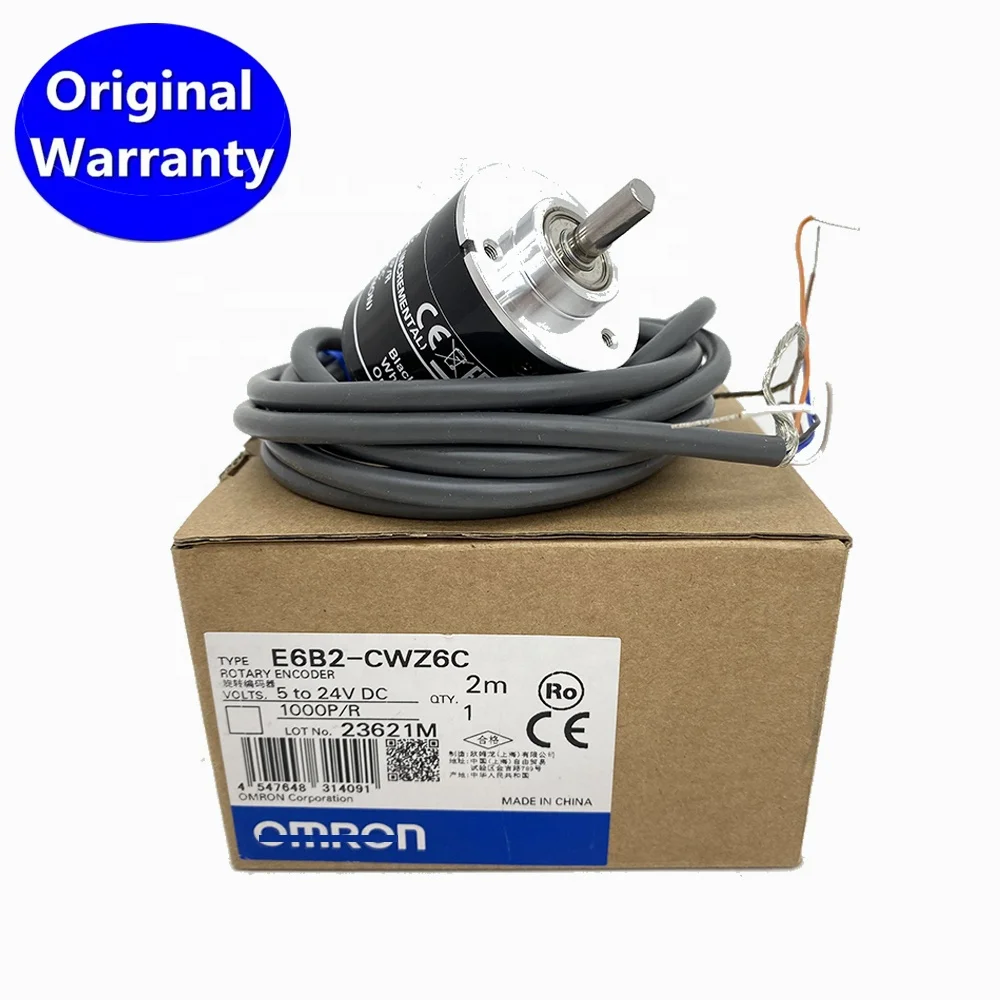

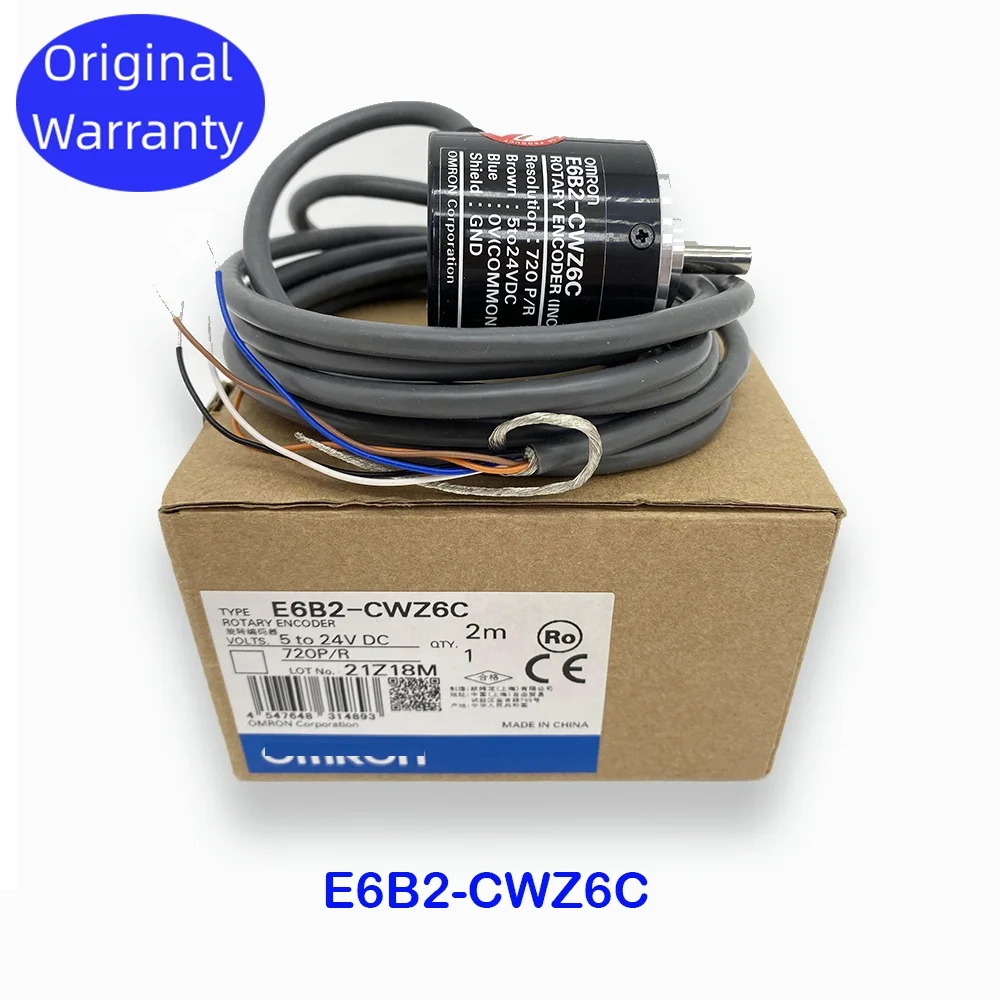

E6B2-CWZ6C |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 720P/R, 800P/R, 1000P/R, 1024P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
0,5M, 2M |
E6B2-CWZ5B |
100P/R, 200P/R, 360P/R, 500P/R, 600P/R, 1000P/R, 2000P/R |
0,5M, 2M |
|
E6B2-CWZ3E |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 1000P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
0,5M, 2M |
|
E6B2-CWZ1X |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 1000P/R, 1024P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
0,5M, 2M |
|
Dia 50 mm |
E6C2-CWZ6C |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 720P/R, 800P/R, 1000P/R, 1024P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
2M |
E6C2-CWZ5B |
100P/R, 200P/R, 360P/R, 500P/R, 600P/R, 1000P/R, 2000P/R |
2M |
|
E6C2-CWZ3E |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 720P/R, 800P/R, 1000P/R, 1024P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
2M |
|
E6C2-CWZ1X |
10P/R, 20P/R, 30P/R, 40P/R, 50P/R, 60P/R, 100P/R, 200P/R, 300P/R, 360P/R, 400P/R, 500P/R, 600P/R, 720P/R, 800P/R, 1000P/R, 1024P/R, 1200P/R, 1500P/R, 1800P/R, 2000P/R |
2M |
