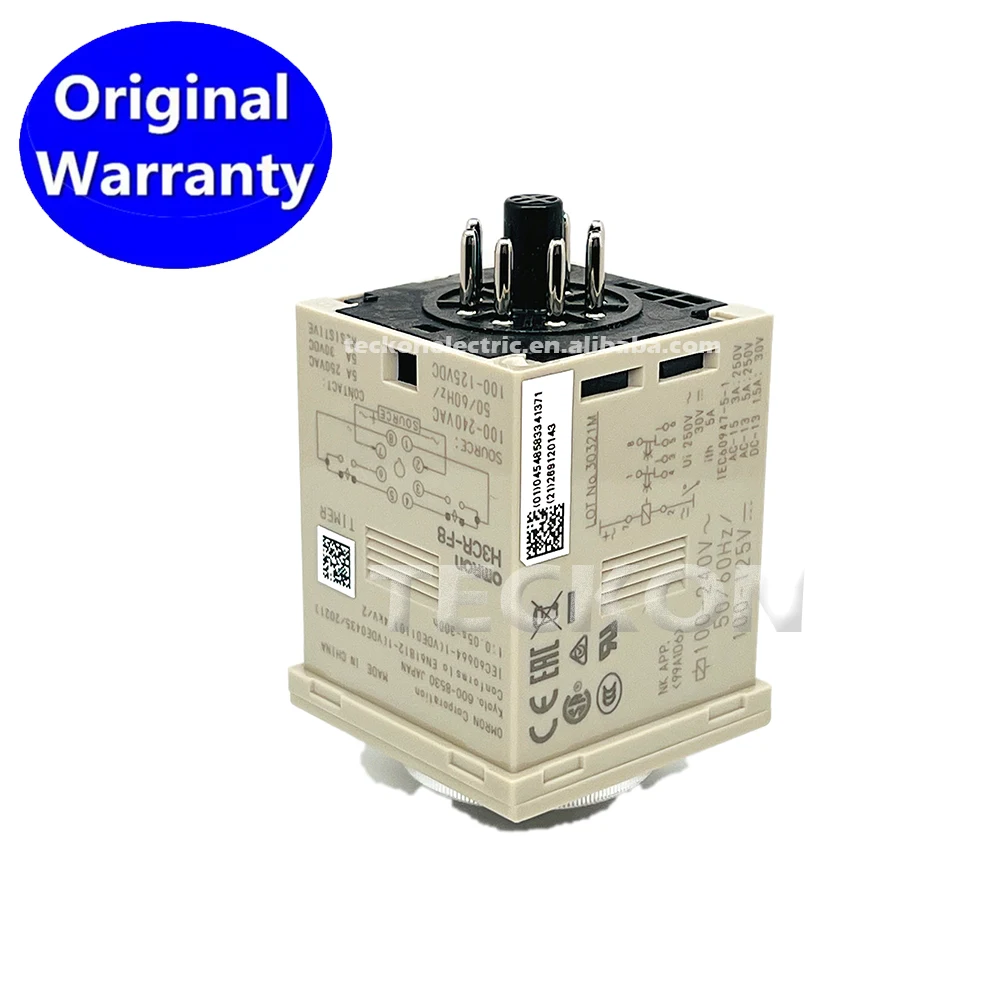

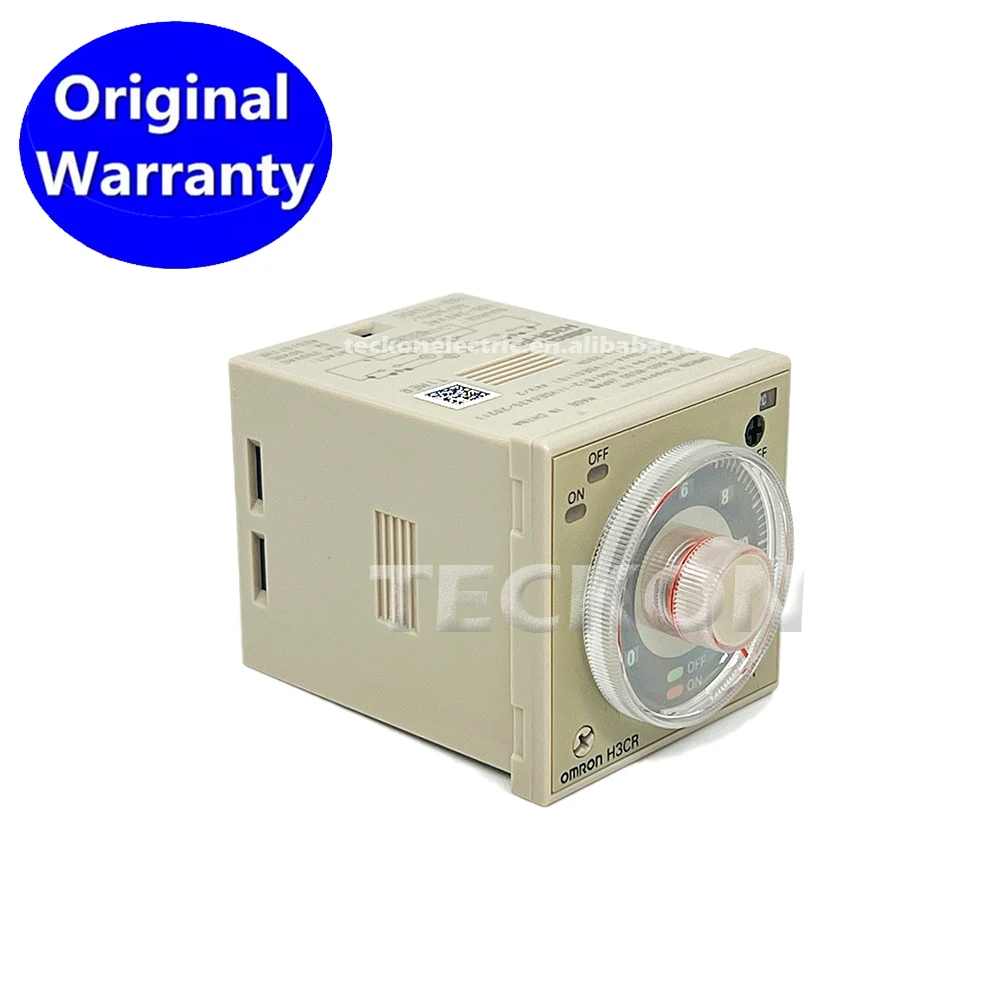

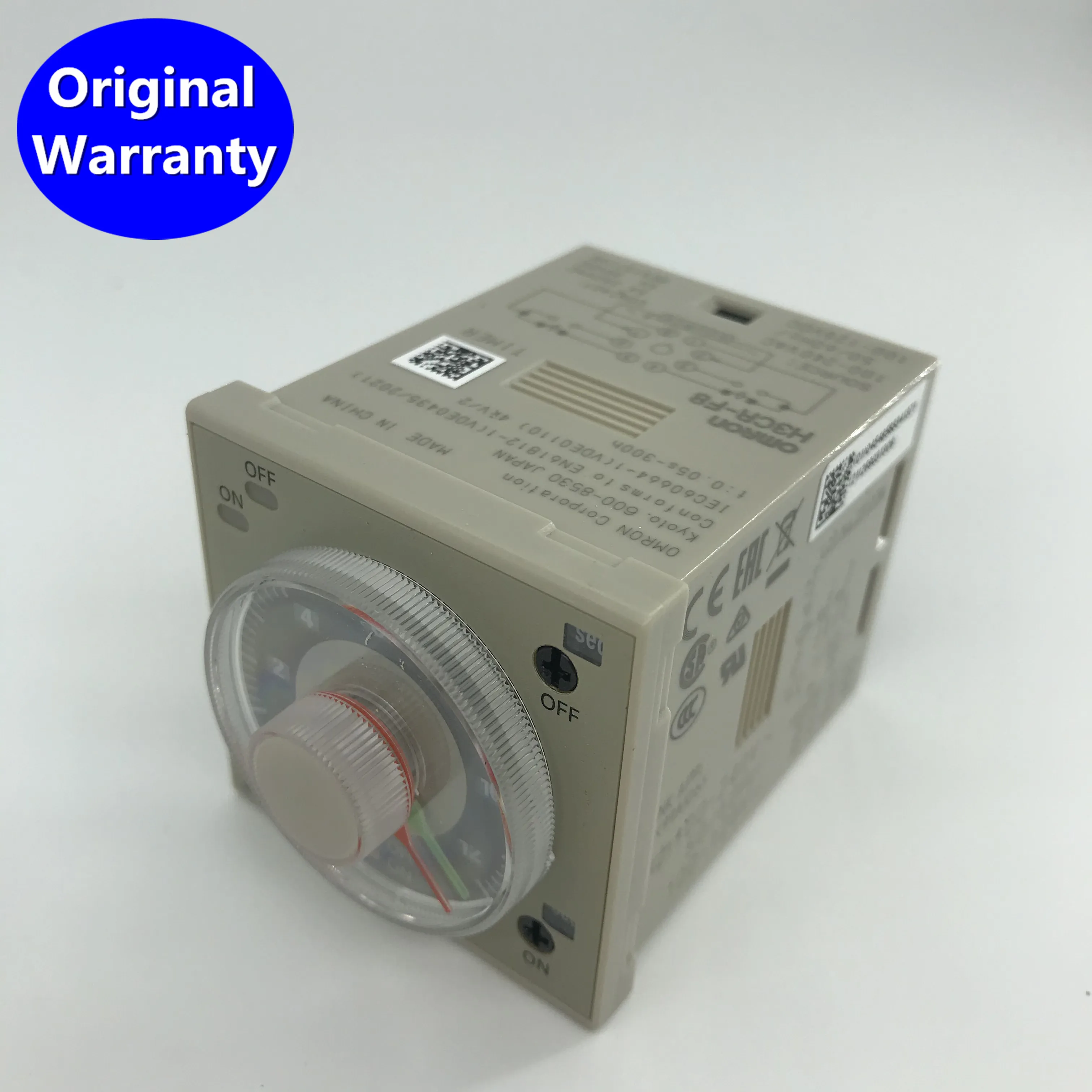

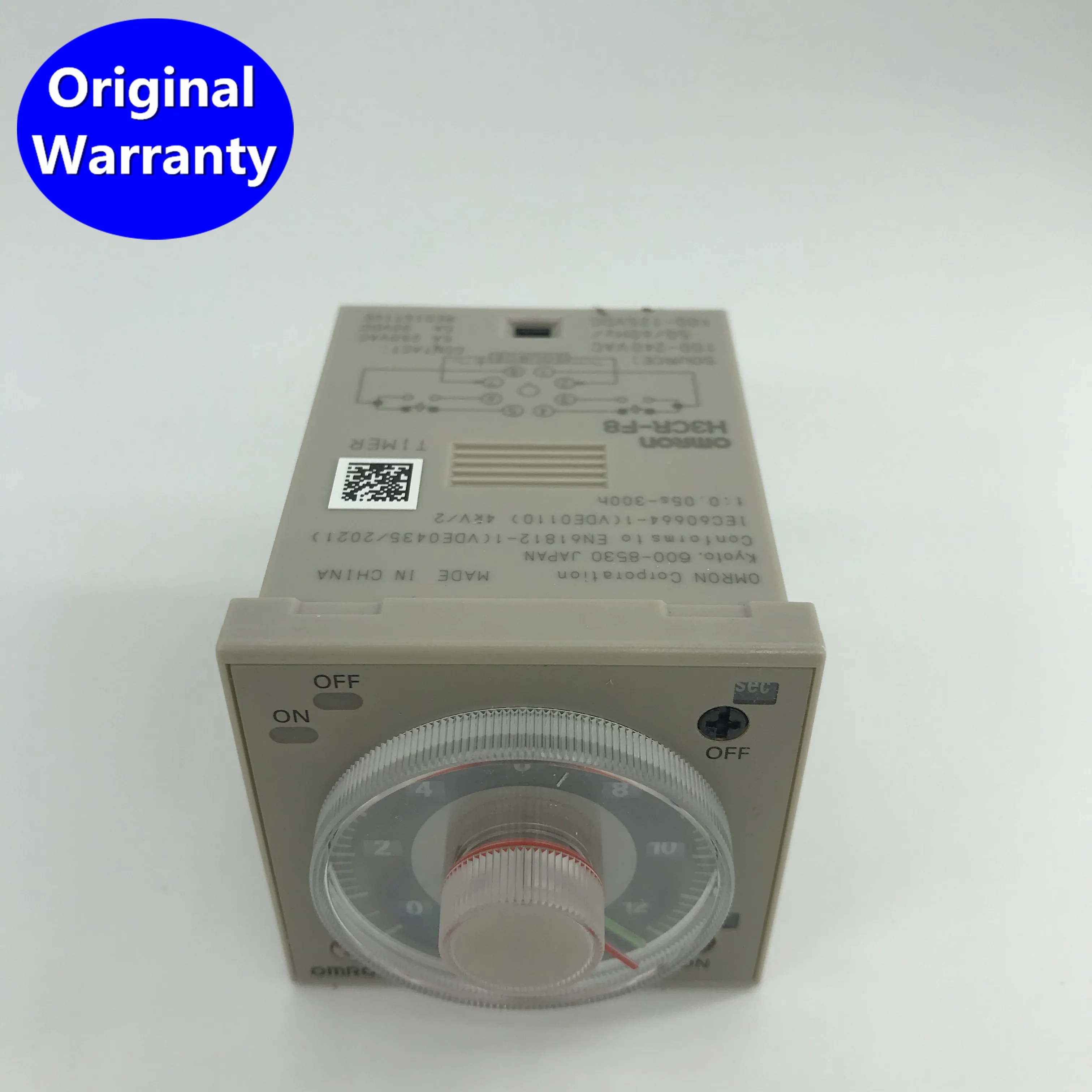

H3CR-F8 AC100-240/DC100-125 Analog Timers Time Ranges 0.05 s to 300 h 8-pin Twin Timer

H3CR-F8 AC100-240/DC100-125 Analog Timers Time Ranges 0.05 s to 300 h 8-pin Twin Timer

Product Overview H3CR-F8 AC100-240/DC100-125100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 8-pin FEATURES AT A GLANCE Rated power suppl...

Overview
Related Products

Product Overview

H3CR-F8 AC100-240/DC100-125

100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 8-pin

FEATURES AT A GLANCE

Rated power supply voltageControl output (Type)Operating resettingConnecting method

dc100 125 analog timers time ranges 005 s to 300 h 8 pin twin timer-0

dc100 125 analog timers time ranges 005 s to 300 h 8 pin twin timer-1

dc100 125 analog timers time ranges 005 s to 300 h 8 pin twin timer-2

dc100 125 analog timers time ranges 005 s to 300 h 8 pin twin timer-3

PRODUCT SPECIFICATIONS

No	Item	Data
1	Rated power supply voltage	100 to 240 VAC 50/60 Hz 100 to 125 VDC Ripple 20% max.
2	Allowable voltage variable range	85 to 110% of the power supply voltage
3	Power consumption	Approx. 10 VA (at 240 VAC) Approx. 2.1 W (at 240 VAC)
4	Number of time ranges	18
5	Operation mode	Flicker OFF start
6	Control output (Type)	Time-limit: DPDT
7	Setting error	±5% FS ±50 ms max.
8	Reset time	0.1 s max.
