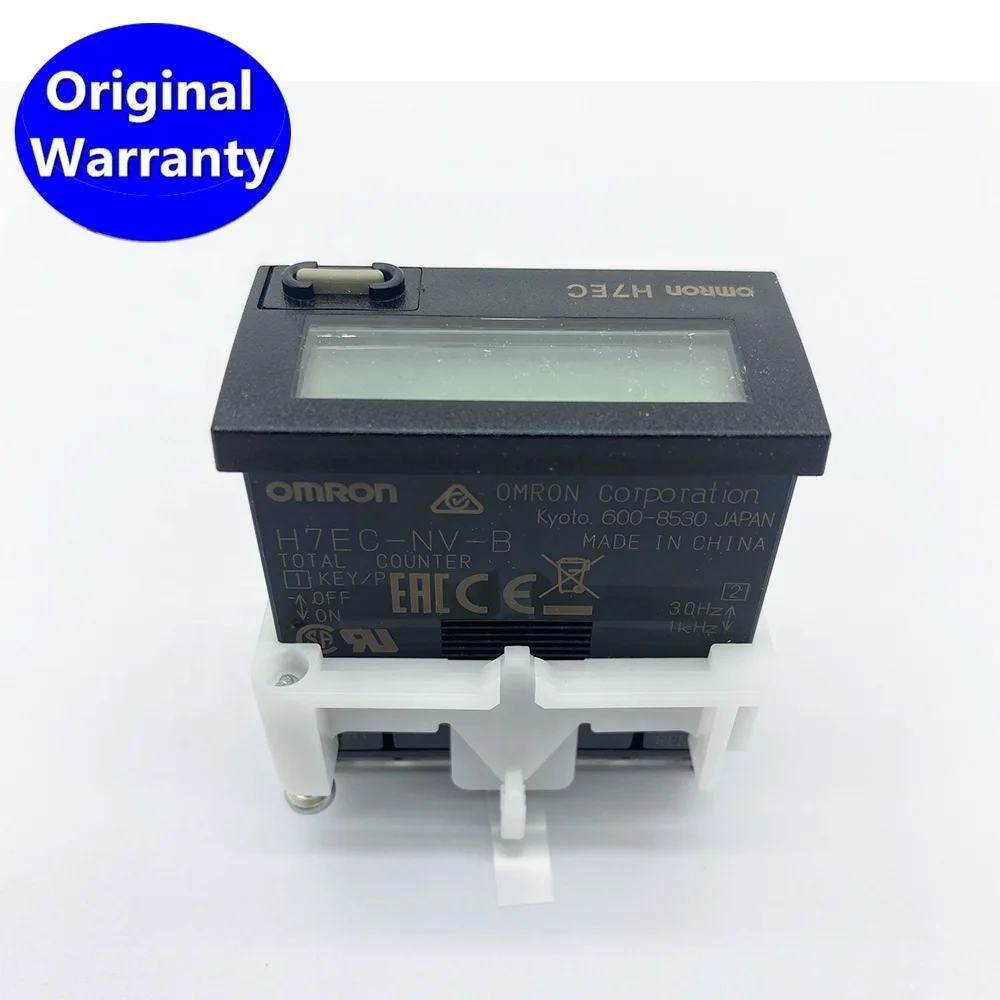

H7EC-NV 8 Digit Voltage Input Miniature Total Counter H7EC-NV-B

H7EC-NV 8 Digit Voltage Input Miniature Total Counter H7EC-NV-B

Product Paramenters Miniature Total Counter, 8 digit, Voltage input, backlight None, Reset key Equipped, Black Digits8 digitExternal connection methodScrew terminalMounting methodFlush mountingCount range0 to 99999999Max. co...

Overview
Related Products

Product Paramenters

Miniature Total Counter, 8 digit, Voltage input, backlight None, Reset key Equipped, Black

Digits	8 digit
External connection method	Screw terminal
Mounting method	Flush mounting
Count range	0 to 99999999
Max. counting speed	30 Hz/1 kHz (switching) (ON/OFF ratio 1:1)
Minimum input signal width	30 Hz: 16.7 ms 1 kHz: 0.5 ms
Input mode	Increment (UP)
Reset system	External and manual reset

More Options

Count input	Max. counting speed	Display	Model
Count input	Max. counting speed	Display				Light-gray body	Black body
PNP/NPN universal DC voltage input (4.5 to 30 VDC)	30 Hz ← → 1 kHz (switchable)	7-segment LCD with backlight	H7EC-NV-H	H7EC-NV-BH
PNP/NPN universal DC voltage input (4.5 to 30 VDC)	30 Hz ← → 1 kHz (switchable)			7-segment LCD	H7EC-NV	H7EC-NV-B
AC/DC multi-voltage input (24 to 240 VAC/VDC)	20 Hz	7-segment LCD	H7EC-NFV	H7EC-NFV-B
No-voltage	30 Hz ← → 1 kHz (switchable)	7-segment LCD	H7EC-N	H7EC-N-B
