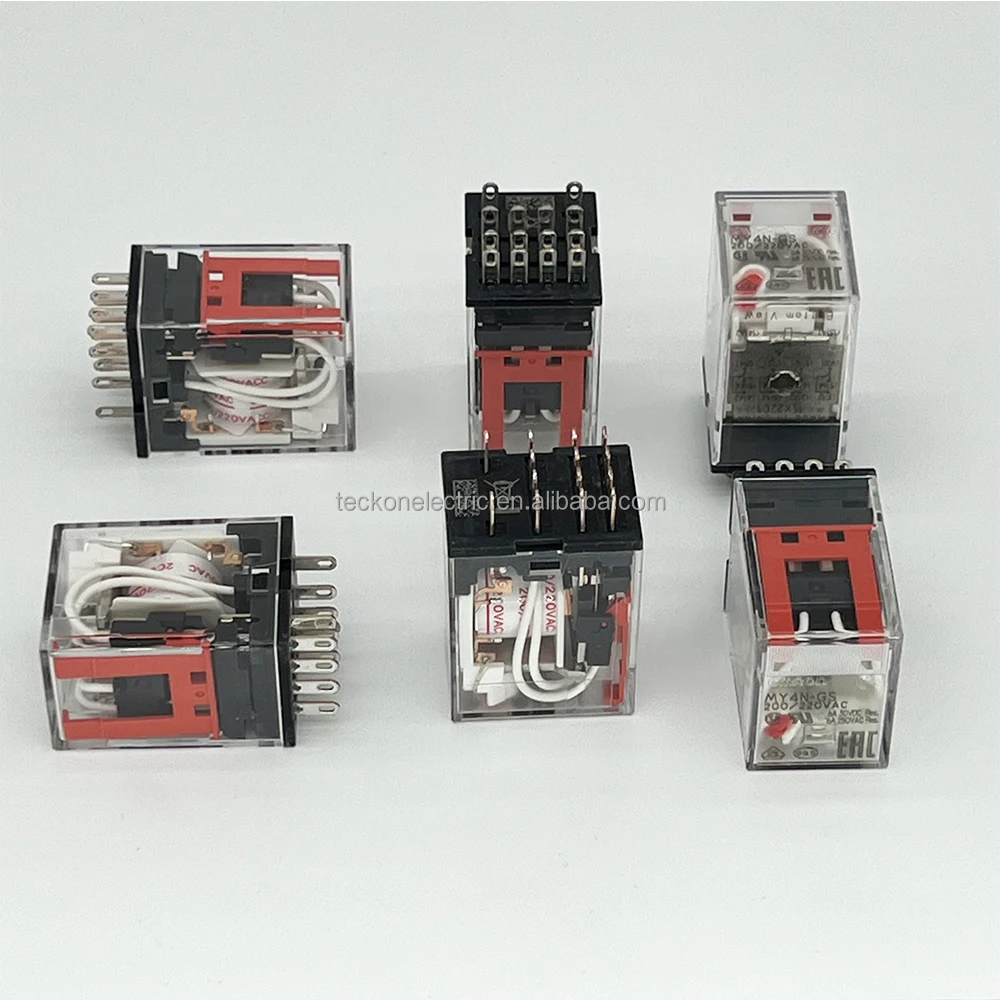

Miniature Power 8 Pin Relays MY2N-GS MY2N-D2-GS MY2N-CR-GS DC12 DC24 DC48 AC100/110 AC110/120 AC220/240

Miniature Power 8 Pin Relays MY2N-GS MY2N-D2-GS MY2N-CR-GS DC12 DC24 DC48 AC100/110 AC110/120 AC220/240

Product Paramenters Kind Reminder* Please state the related voltage for any inquiries or orders.* Sockets are to be offered separately. CategoryModel NumberContactstructureRated voltage (V)Product Numberof pole...

Overview
Related Products

Product Paramenters

Kind Reminder

* Please state the related voltage for any inquiries or orders.

* Sockets are to be offered separately.

Category	Model Number			Contact structure	Rated voltage (V)
Category	Product	Number of poles (2)	Number of poles (4)	Contact structure	Rated voltage (V)	Contact structure	Rated voltage (V)
Standard model without operation indicator	MY2-GS-R	MY4-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110 VDC
Standard model without operation indicator	MY2-GS-R	MY4-GS-R	Single
Standard model with operation indicator	MY2N-GS-R	MY4N-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC
Standard model with operation indicator and latching lever	MY2IN-GS-R	MY4IN-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC

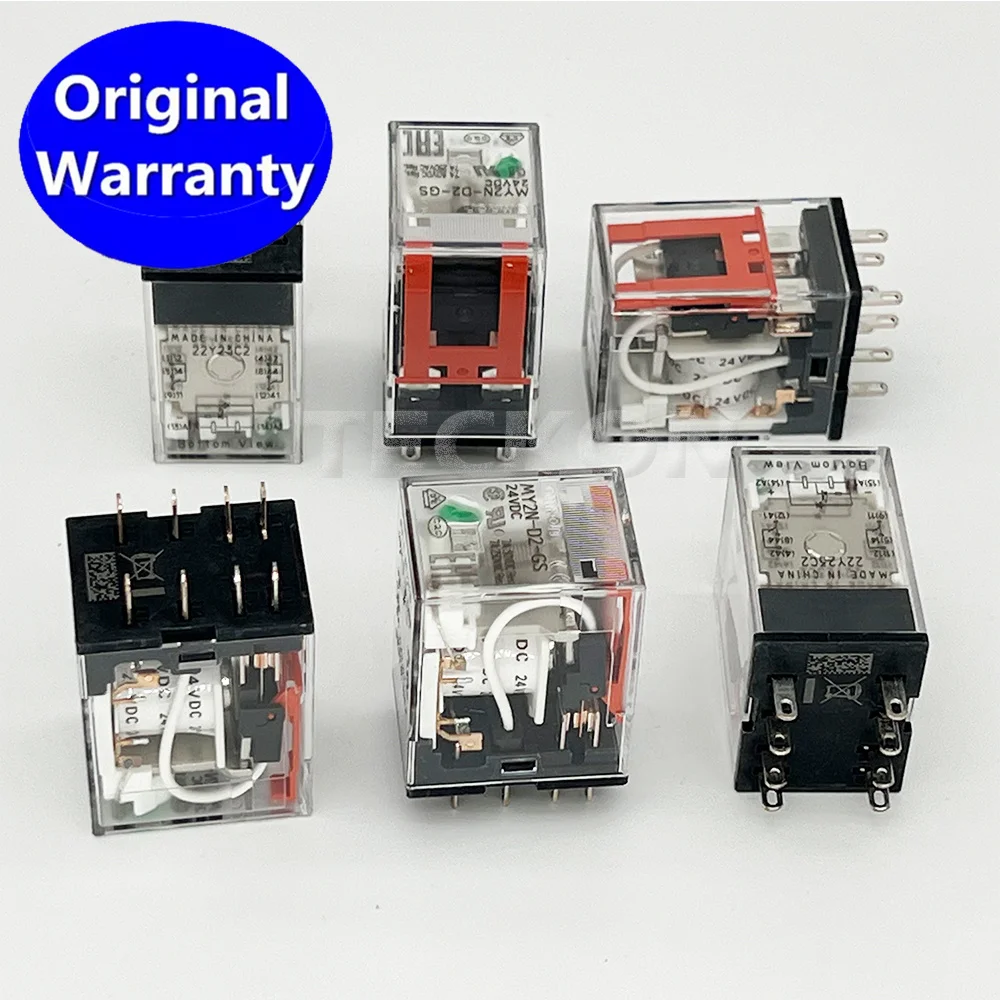

with built-in diodes for coil surge absorption with operation indicator	MY2N-D2-GS-R	MY4N-D2-GS-R	Single	12, 24, 48, 100/110, 220 VDC
Models with built-in diodes for coil surge absorption with operation indicator and latching lever	MY2IN-D2-GS-R	MY4IN-D2-GS-R	Single	12, 24, 48, 100/110, 220 VDC
Models with built-in CR circuits for coil surge absorption with operation indicator	MY2N-CR-GS-R	MY4N-CR-GS-R	Single	100/110, 110/120, 200/220, 220/240 VAC
Models with built-in CR circuits for coil surge absorption with operation indicator and latching lever	MY2IN-CR-GS-R	MY4IN-CR-GS-R	Single	100/110, 110/120, 200/220, 220/240 VAC

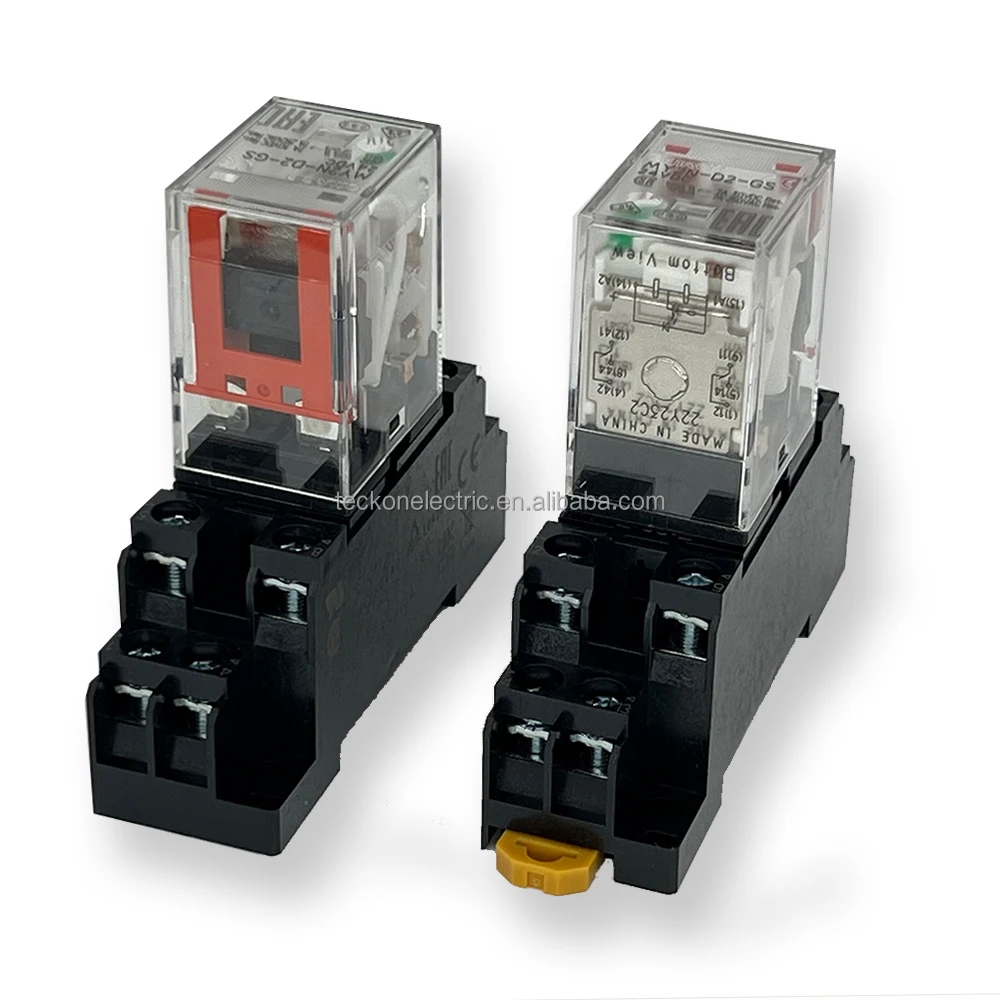

Model Number	Hold-down Clips	Applicable Relay Model	Number of Pins	Mounting Method
PYFZ-08-E	PYC-A1	MY2-GS-R MY2N-GS-R MY2IN-GS-R MY2N-D2-GS-R MY2IN-D2-GS-R MY2N-CR-GS-R MY2IN-CR-GS-R	8	DIN Track or screw mounting
PYF08A-N	PYC-A1
PYF-08-PU
PYFZ-14-E	PYC-A1	MY4-GS-R MY4N-GS-R MY4IN-GS-R MY4N-D2-GS-R MY4IN-D2-GS-R MY4N-CR-GS-R MY4IN-CR-GS-R	14
PYF14A-N	PYC-A1
PYF-14-PU
