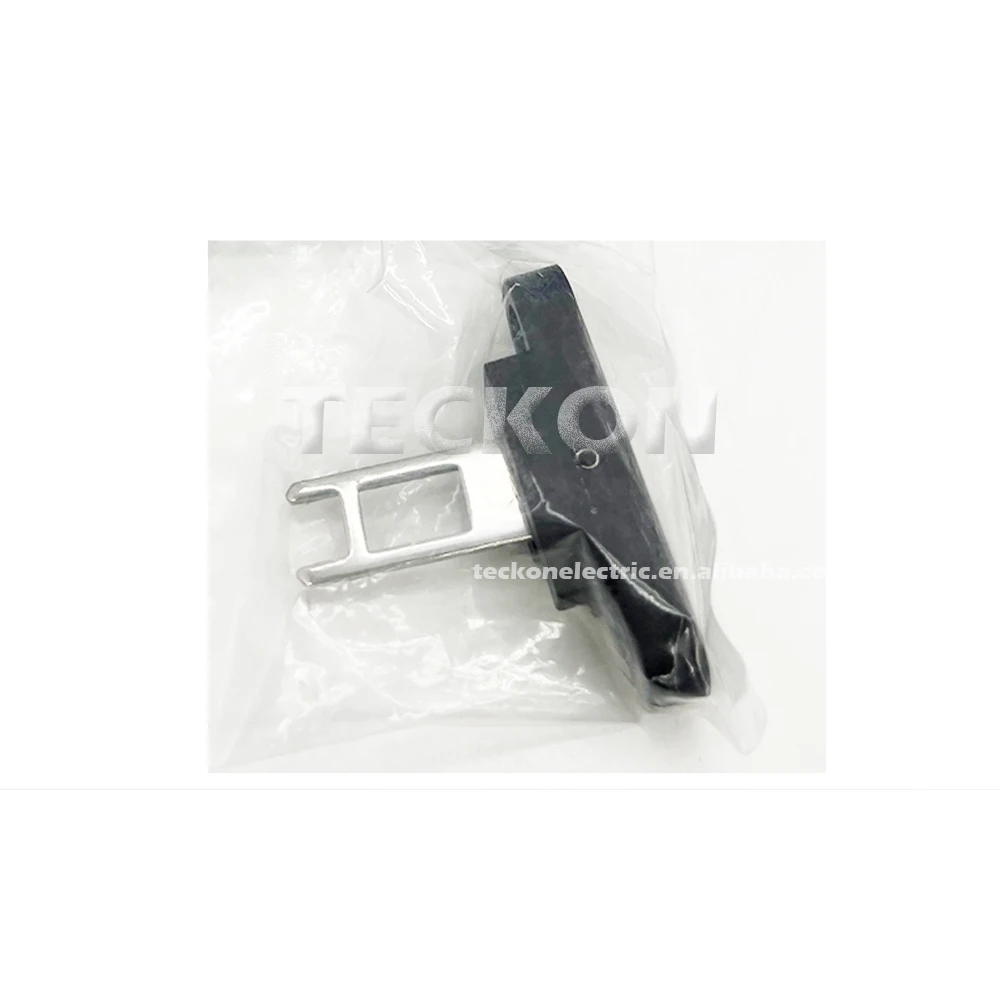

Operation Key to Safety Door Lock Device Door Switch D4DS-K3
Product Paramenters
Please note these are just a few reference photos. You may contact us directly if you need more photos or information.
TypeContact configurationConduit outlet/Co...
- Overview
- Related Products
Product Paramenters
Please note these are just a few reference photos. You may contact us directly if you need more photos or information.
Type |
Contact configuration |
Conduit outlet/ Connector |
Model |
||
1-Conduit type |
Slow-action |
1NC/1NO |
Pg13.5 |
D4NS-1AF |
|
G1/2 |
D4NS-2AF |
||||
M20 |

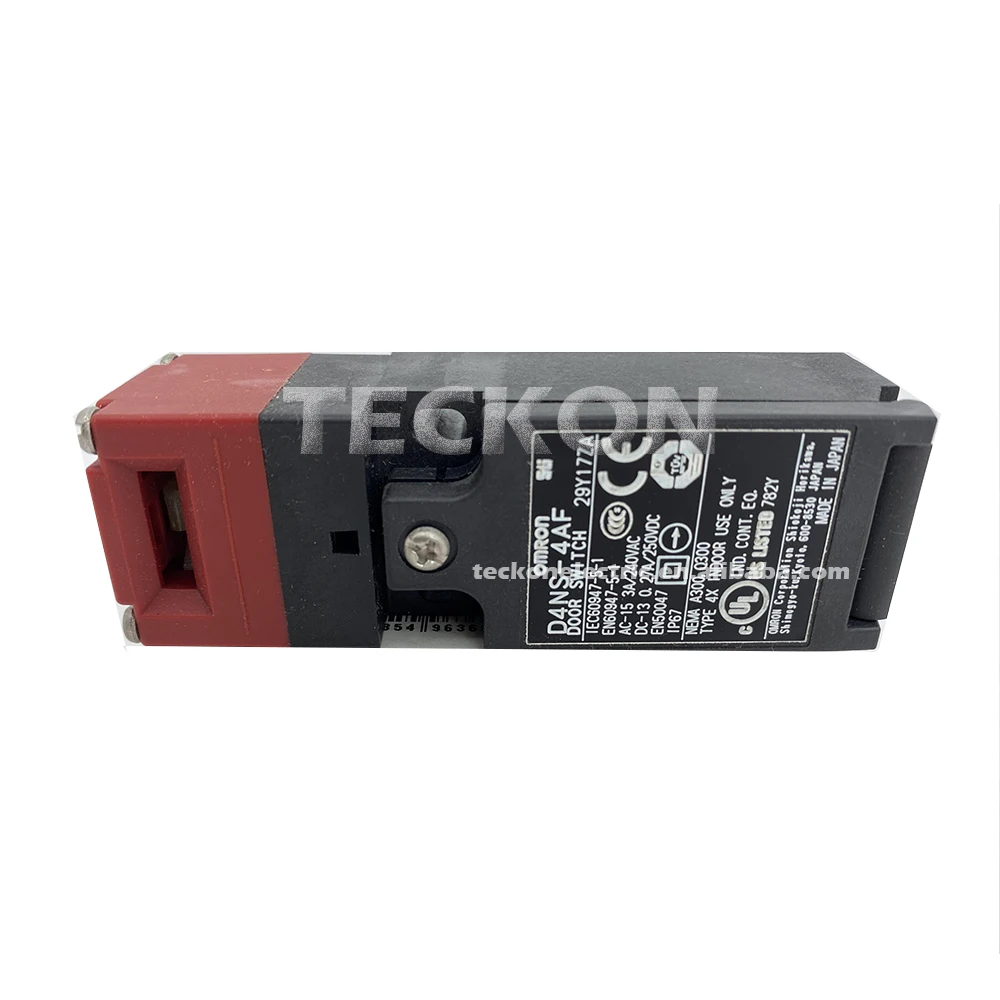

D4NS-4AF |
||||
2NC |
Pg13.5 |
D4NS-1BF |
|||
G1/2 |
D4NS-2BF |
||||
M20 |
D4NS-4BF |
||||
2NC/1NO |
Pg13.5 |
D4NS-1CF |
|||
G1/2 |
D4NS-2CF |
||||
M20 |

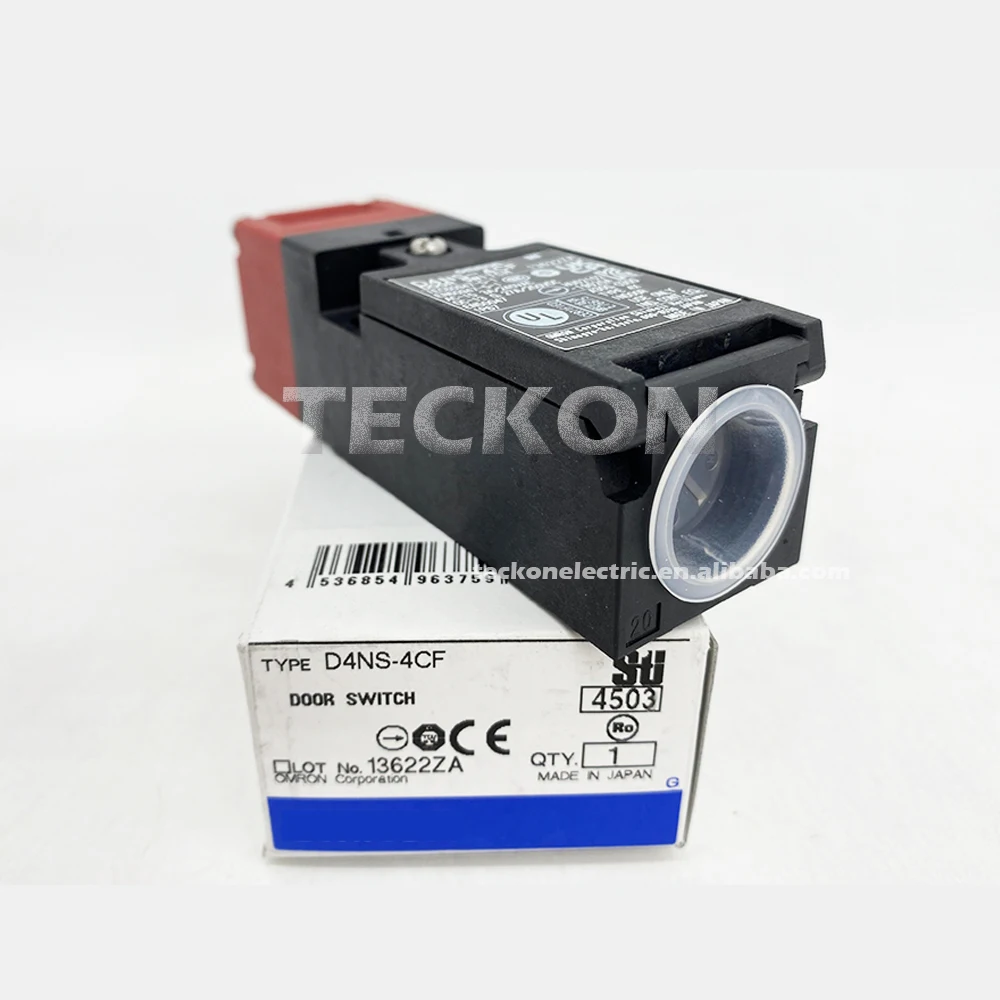

D4NS-4CF |
||||
3NC |
Pg13.5 |
D4NS-1DF |
|||
G1/2 |
D4NS-2DF |
||||
M20 |
D4NS-4DF |
||||
Slow-action MBB contact |
1NC/1NO |
Pg13.5 |
D4NS-1EF |
||
G1/2 |
D4NS-2EF |
||||
M20 |
D4NS-4EF |
||||
2NC/1NO |
Pg13.5 |
D4NS-1FF |
|||
G1/2 |
D4NS-2FF |
||||
M20 |
D4NS-4FF |
||||
2-Conduit type |
Slow-action |
1NC/1NO |
G1/2V |
D4NS-6AF |
|
M20 |
D4NS-8AF |
||||
2NC |
G1/2 |
D4NS-6BF |
|||
M20 |
D4NS-8BF |
||||
2NC/1NO |
G1/2 |
D4NS-6CF |
|||
M20 |
D4NS-8CF |
||||
3NC |
G1/2 |
D4NS-6DF |
|||
M20 |
D4NS-8DF |
||||
Slow-action MBB contact |
1NC/1NO |
G1/2 |
D4NS-6EF |
||
M20 |
D4NS-8EF |
||||
2NC/1NO |
G1/2 |
D4NS-6FF |
|||
M20 |
D4NS-8FF |
||||
1-Conduit type, with connector |
Slow-action |
1NC/1NO |
M12 connector |
D4NS-9AF |
|
2NC |
D4NS-9BF |
||||
Slow-action MBB contact |
1NC/1NO |
D4NS-9EF |
|||
1-Conduit type (High pull-force type) |
Slow-action |
1NC/1NO |
G1/2 |
D4NS-2AF-SJ |
|
M20 |
D4NS-4AF-SJ |
||||
2NC |
G1/2 |
D4NS-2BF-SJ |
|||
M20 |
D4NS-4BF-SJ |
||||
2NC/1NO |
G1/2 |
D4NS-2CF-SJ |
|||
M20 |
D4NS-4CF-SJ |
||||
3NC |
G1/2 |
D4NS-2DF-SJ |
|||
M20 |
D4NS-4DF-SJ |
||||
Type |
Model |
Horizontal mounting |
D4DS-K1 |
Vertical mounting |
D4DS-K2 |
Adjustable mounting (Horizontal) |
D4DS-K3 |
Adjustable mounting (Horizontal/Vertical) |
D4DS-K5 |
