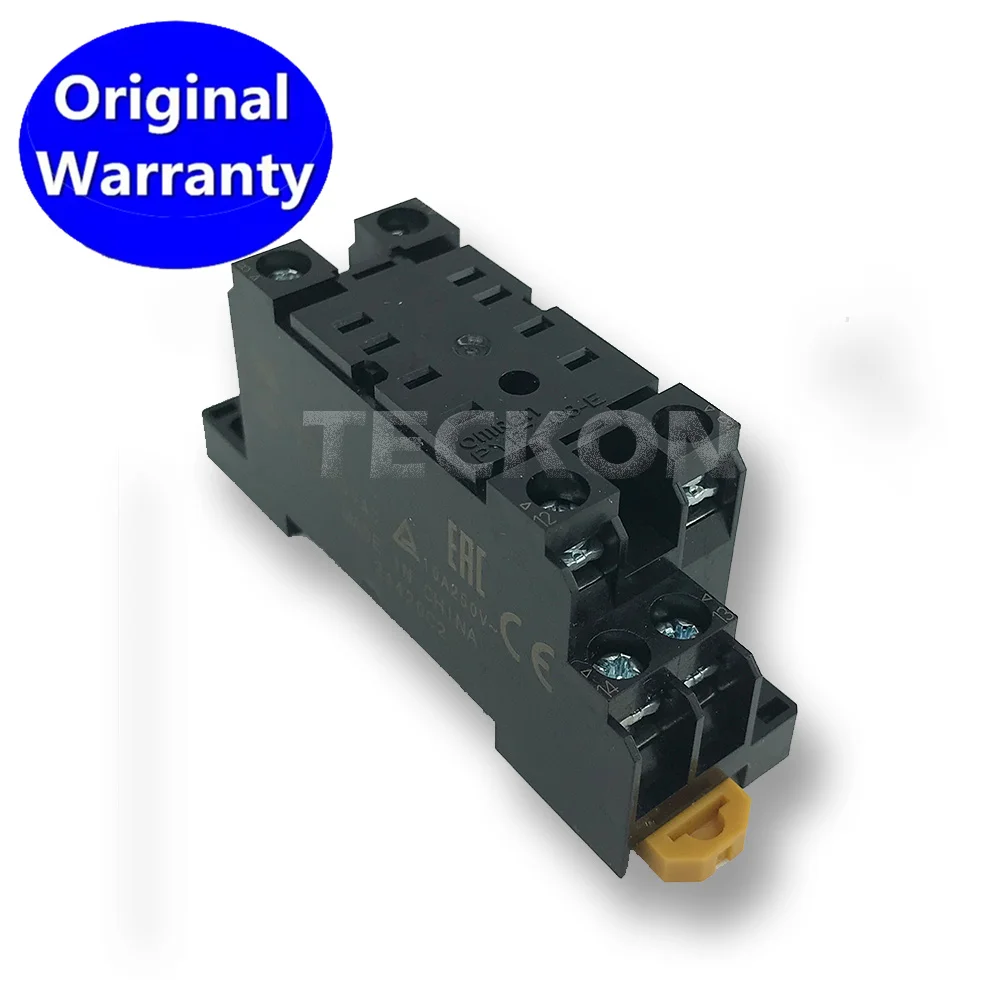

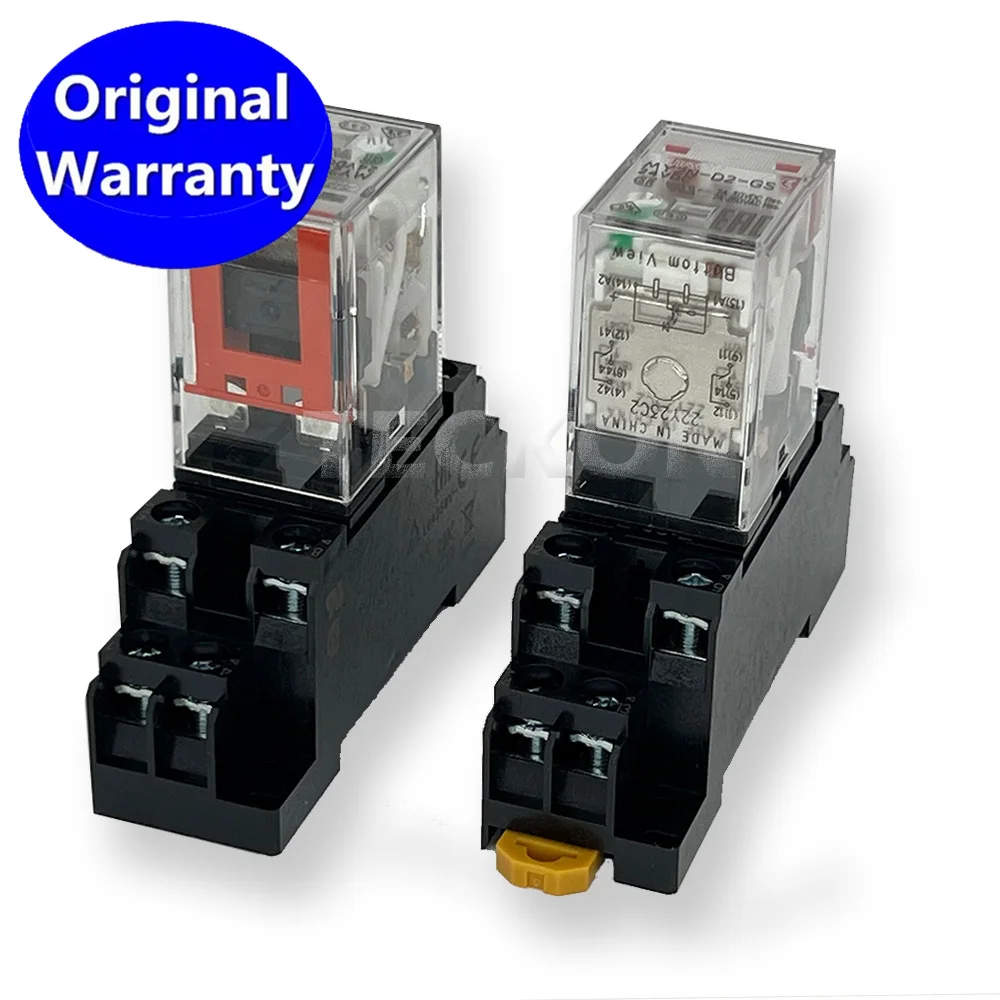

PYFZ DIN Track Mounting Socket PYFZ-08-E 8 Pin Socket for MY2N-GS Miniature Power Relays H3Y Timer PYFZ08

PYFZ DIN Track Mounting Socket PYFZ-08-E 8 Pin Socket for MY2N-GS Miniature Power Relays H3Y Timer PYFZ08

Product Paramenters Kind Reminder* Please state the related voltage for any inquiries or orders.* Sockets are to be offered separately. CategoryModel NumberContactstructureRated voltage (V)Product Numberof pole...

Overview
Related Products

product pyfz din track mounting socket pyfz 08 e 8 pin socket for my2n gs miniature power relays h3y timer pyfz08-0

product pyfz din track mounting socket pyfz 08 e 8 pin socket for my2n gs miniature power relays h3y timer pyfz08-1

product pyfz din track mounting socket pyfz 08 e 8 pin socket for my2n gs miniature power relays h3y timer pyfz08-2

Product Paramenters

Kind Reminder

* Please state the related voltage for any inquiries or orders.

* Sockets are to be offered separately.

Category	Model Number			Contact structure	Rated voltage (V)
Category	Product	Number of poles (2)	Number of poles (4)	Contact structure	Rated voltage (V)	Contact structure	Rated voltage (V)
Standard model without operation indicator	MY2-GS-R	MY4-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110 VDC
Standard model without operation indicator	MY2-GS-R	MY4-GS-R	Single
Standard model with operation indicator	MY2N-GS-R	MY4N-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC
Standard model with operation indicator and latching lever	MY2IN-GS-R	MY4IN-GS-R	Single	12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC
with built-in diodes for coil surge absorption with operation indicator	MY2N-D2-GS-R	MY4N-D2-GS-R	Single	12, 24, 48, 100/110, 220 VDC
Models with built-in diodes for coil surge absorption with operation indicator and latching lever	MY2IN-D2-GS-R	MY4IN-D2-GS-R	Single	12, 24, 48, 100/110, 220 VDC
Models with built-in CR circuits for coil surge absorption with operation indicator	MY2N-CR-GS-R	MY4N-CR-GS-R	Single	100/110, 110/120, 200/220, 220/240 VAC
Models with built-in CR circuits for coil surge absorption with operation indicator and latching lever	MY2IN-CR-GS-R	MY4IN-CR-GS-R	Single	100/110, 110/120, 200/220, 220/240 VAC

Model Number	Hold-down Clips	Applicable Relay Model	Number of Pins	Mounting Method
PYFZ-08-E	PYC-A1	MY2-GS-R MY2N-GS-R MY2IN-GS-R MY2N-D2-GS-R MY2IN-D2-GS-R MY2N-CR-GS-R MY2IN-CR-GS-R	8	DIN Track or screw mounting
PYF08A-N	PYC-A1
PYF-08-PU
PYFZ-14-E	PYC-A1	MY4-GS-R MY4N-GS-R MY4IN-GS-R MY4N-D2-GS-R MY4IN-D2-GS-R MY4N-CR-GS-R MY4IN-CR-GS-R	14
PYF14A-N	PYC-A1
PYF-14-PU
