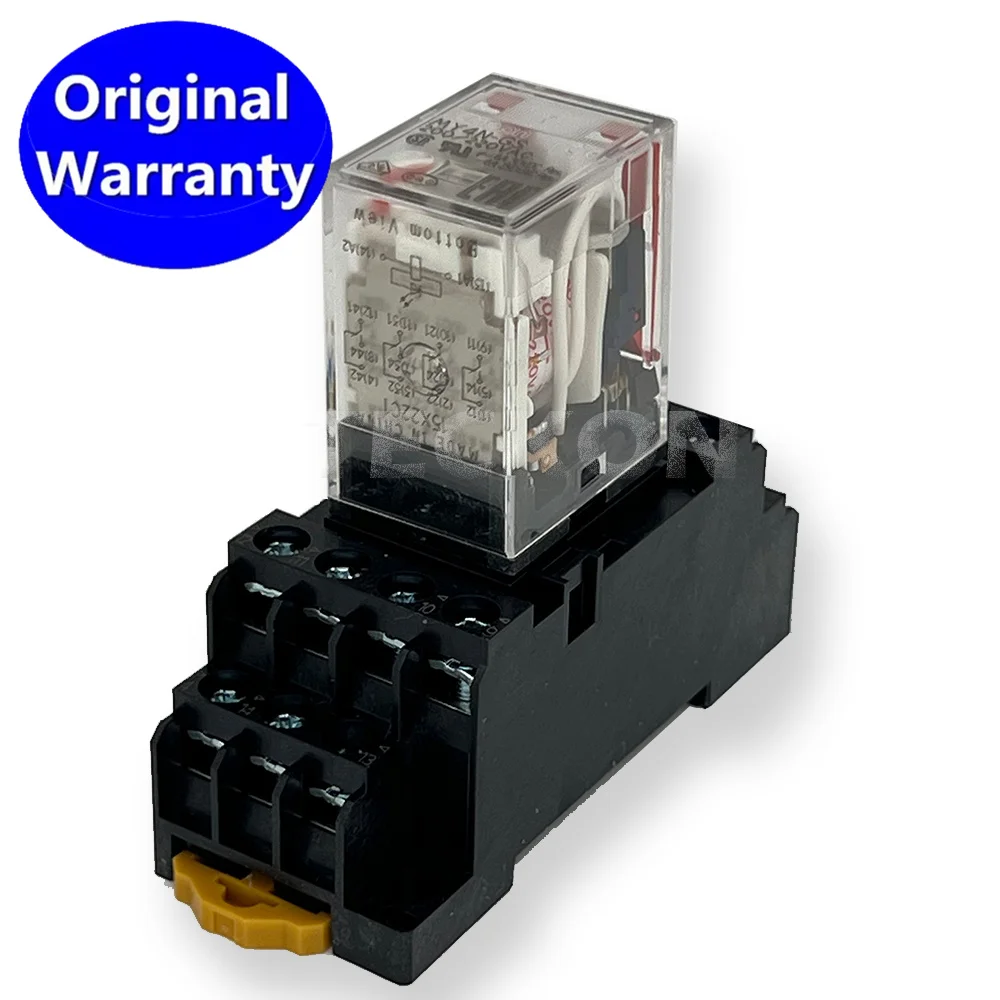

Socket PYF14A-E for MY4N-GS Miniature Power Relays PYFZ-14-E
Product Paramenters
Kind Reminder* Please state the related voltage for any inquiries or orders.* Sockets are to be offered separately.
CategoryModel NumberContactstructureRated voltage (V)Product Numberof pole...
- Overview
- Related Products
Product Paramenters
Kind Reminder
* Please state the related voltage for any inquiries or orders.
* Sockets are to be offered separately.
Category |
Model Number |
Contact structure |
Rated voltage (V) |
||
Product |
Number of poles (2) |
Number of poles (4) |
Contact structure |
Rated voltage (V) |
|
Standard model without operation indicator |
MY2-GS-R |
MY4-GS-R |
Single |
12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110 VDC |
|
Standard model with operation indicator |
MY2N-GS-R |
MY4N-GS-R |
Single |
12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC |
|
Standard model with operation indicator and latching lever |
MY2IN-GS-R |
MY4IN-GS-R |
Single |
12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC 6, 12, 24, 48, 100/110, 220 VDC |
|
with built-in diodes for coil surge absorption with operation indicator |
MY2N-D2-GS-R |
MY4N-D2-GS-R |
Single |
12, 24, 48, 100/110, 220 VDC |
|
Models with built-in diodes for coil surge absorption with operation indicator and latching lever |
MY2IN-D2-GS-R |
MY4IN-D2-GS-R |
Single |
12, 24, 48, 100/110, 220 VDC |
|
Models with built-in CR circuits for coil surge absorption with operation indicator |
MY2N-CR-GS-R |
MY4N-CR-GS-R |
Single |
100/110, 110/120, 200/220, 220/240 VAC |
|
Models with built-in CR circuits for coil surge absorption with operation indicator and latching lever |
MY2IN-CR-GS-R |
MY4IN-CR-GS-R |
Single |
100/110, 110/120, 200/220, 220/240 VAC |
|
Model Number |
Hold-down Clips |
Applicable Relay Model |
Number of Pins |
Mounting Method |
PYFZ-08-E |
PYC-A1 |
MY2-GS-R MY2N-GS-R MY2IN-GS-R MY2N-D2-GS-R MY2IN-D2-GS-R MY2N-CR-GS-R MY2IN-CR-GS-R |
8 |
DIN Track or screw mounting |
PYF08A-N |
PYC-A1 |
|||
PYF-08-PU |
||||
PYFZ-14-E |
PYC-A1 |
MY4-GS-R MY4N-GS-R MY4IN-GS-R MY4N-D2-GS-R MY4IN-D2-GS-R MY4N-CR-GS-R MY4IN-CR-GS-R |
14 |
|
PYF14A-N |
PYC-A1 |
|||
PYF-14-PU |
